Waterproofing Systems for Balconies and Exteriors

Curated by Formulated Materials

Formulated Materials offers a complete, sequenced waterproofing system for balconies, exterior decks, and breezeways, covering primers, sheet membranes, drainage mats, and protection boards. The core assembly follows a defined installation order: SP1 primer applied first at 200-250 sq ft per gallon on prepared concrete, followed by the S60 self-adhered sheet membrane, then a drainage mat installed drainage-side down over the cured membrane, and finally a protection board before any concrete or tile topping. Full system cure ranges from 24 to 72 hours depending on temperature and humidity, with a minimum application temperature of 40F for the SP1 primer and 70F for the S60 membrane. Substrate selection, concrete, wood framing, or steel deck, guides product specification from the outset. Key performance details are built into each component. The S60 membrane requires a minimum 3-inch lap at seams and covers approximately 60 sq ft per roll, while transitions and penetrations demand 6-inch membrane laps and formed flashing to prevent the most common failure points identified across exterior assemblies. Breezeways carry additional requirements, including a reinforced membrane rated for foot traffic, a UV-stable topcoat, and a minimum deck slope of 1/8 inch per foot to manage horizontal water ponding. Drainage mats must overlap edges by 2 inches minimum and terminate at the drain ring, protecting the membrane from point-load damage in balcony, plaza deck, and green roof applications. For contractors and architects, the single-source assembly approach is designed to eliminate trade scope gaps and simplify specification. Cure sequencing is clearly defined across all components, and the system maps common failures directly to corrective responses. Spec-request links and direct contact with the Formulated Materials sales and technical team are available for project-specific guidance and support.

Frequently Asked Questions

What is the correct installation sequence for a full balcony waterproofing assembly?

The correct sequence is SP1 primer first, followed by the S60 sheet membrane, then the drainage mat, and finally a protection board. Each layer must be installed in order, and the system should cure 48-72 hours before any concrete or tile topping is applied.

What are the application requirements and coverage rates for SP1 primer?

SP1 primer should be applied in one coat at 200-250 square feet per gallon on prepared concrete. Flash-off time is 30-60 minutes at 70 degrees F, with full cure at 24 hours. Do not apply below 40 degrees F or over a damp substrate.

Where do most exterior waterproofing failures occur, and how are they corrected?

Most failures occur at transitions, penetrations, and unprimed substrates. The recommended fixes are to prime all concrete surfaces, lap the membrane at least 6 inches at transitions, and seal all penetrations with formed flashing.

What are the key installation requirements for the S60 sheet membrane?

The S60 requires SP1 primer before application and must be applied at a minimum temperature of 70 degrees F. Lap seams must overlap a minimum of 3 inches, and the membrane must fully cure for 24-48 hours before any topping is installed. One roll covers approximately 60 square feet.

What are the specific waterproofing requirements for breezeway applications?

Breezeways require a reinforced membrane rated for foot traffic and a UV-stable topcoat. The deck must slope to drain at a minimum of 1/8 inch per foot, and SP1 primer must be applied first with a 48-hour cure before the area is opened to traffic. The system must also be capable of handling horizontal water ponding.

Waterproofing Systems for Balconies and Exteriors

9 cards

Curated byFormulated Materials

Membranes, primers, and drainage assemblies for balconies, breezeways, and exterior decks. Includes installation sequence, cure data, and spec-request links for contractors and architects.

formulatedmaterials.com

Balcony Waterproofing Solutions: Full Product Range

Balcony waterproofing requires a primer, sheet membrane, and drainage mat in sequence. Full cure: 24-72 hrs depending on temp and humidity. Select by substrate: concrete, wood framing, or steel deck. Full product range here.

Formulated Materials

formulatedmaterials.com

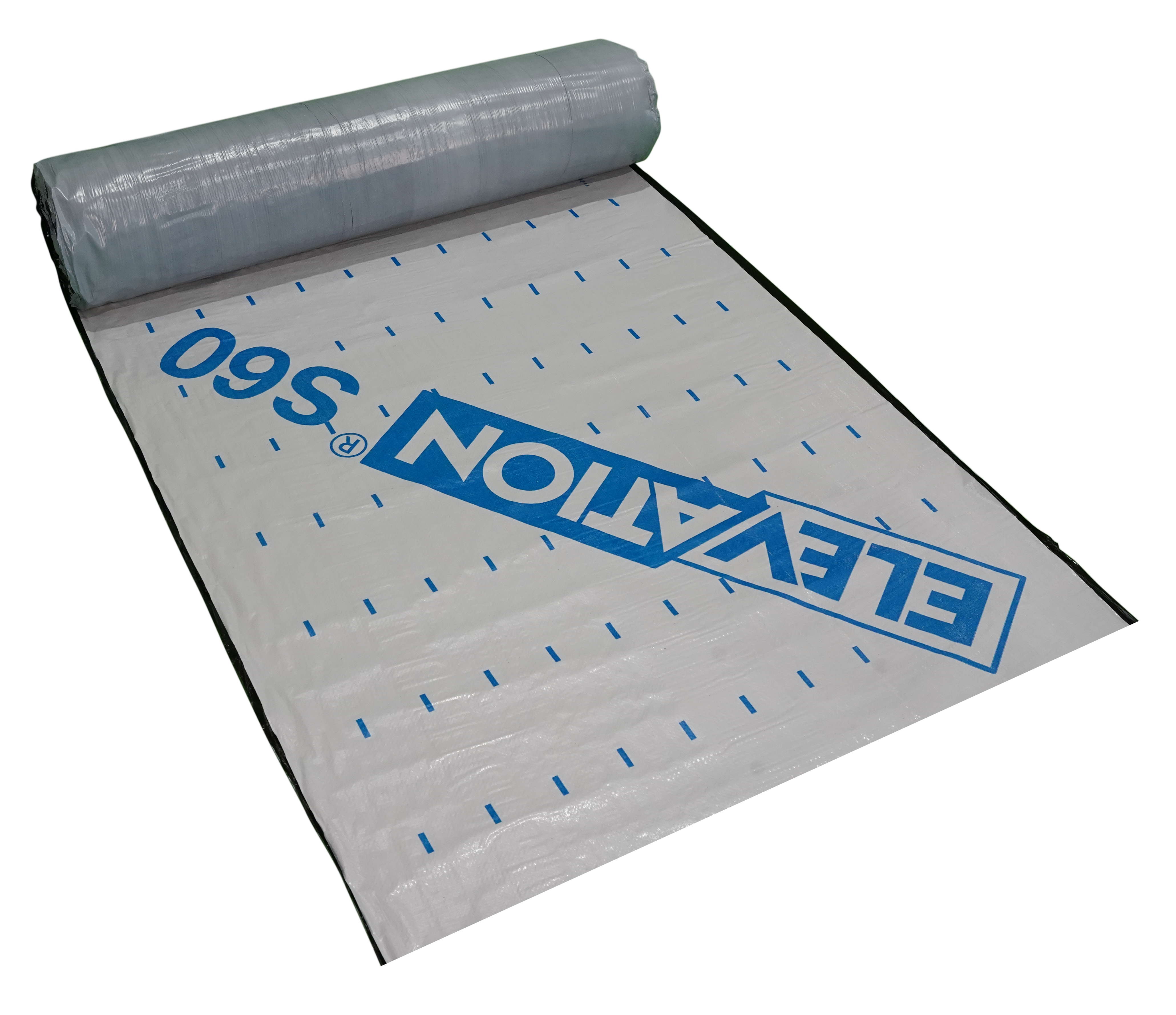

S60 Sheet Membrane: Specs, Installation, and Cure Data

S60 is a self-adhered sheet membrane for balcony and exterior deck assemblies. Requires SP1 primer. Apply at 70F min; full cure 24-48 hrs before topping. Coverage: 1 roll per 60 sq ft. Lap seams 3 in. minimum.

Formulated Materials

formulatedmaterials.com

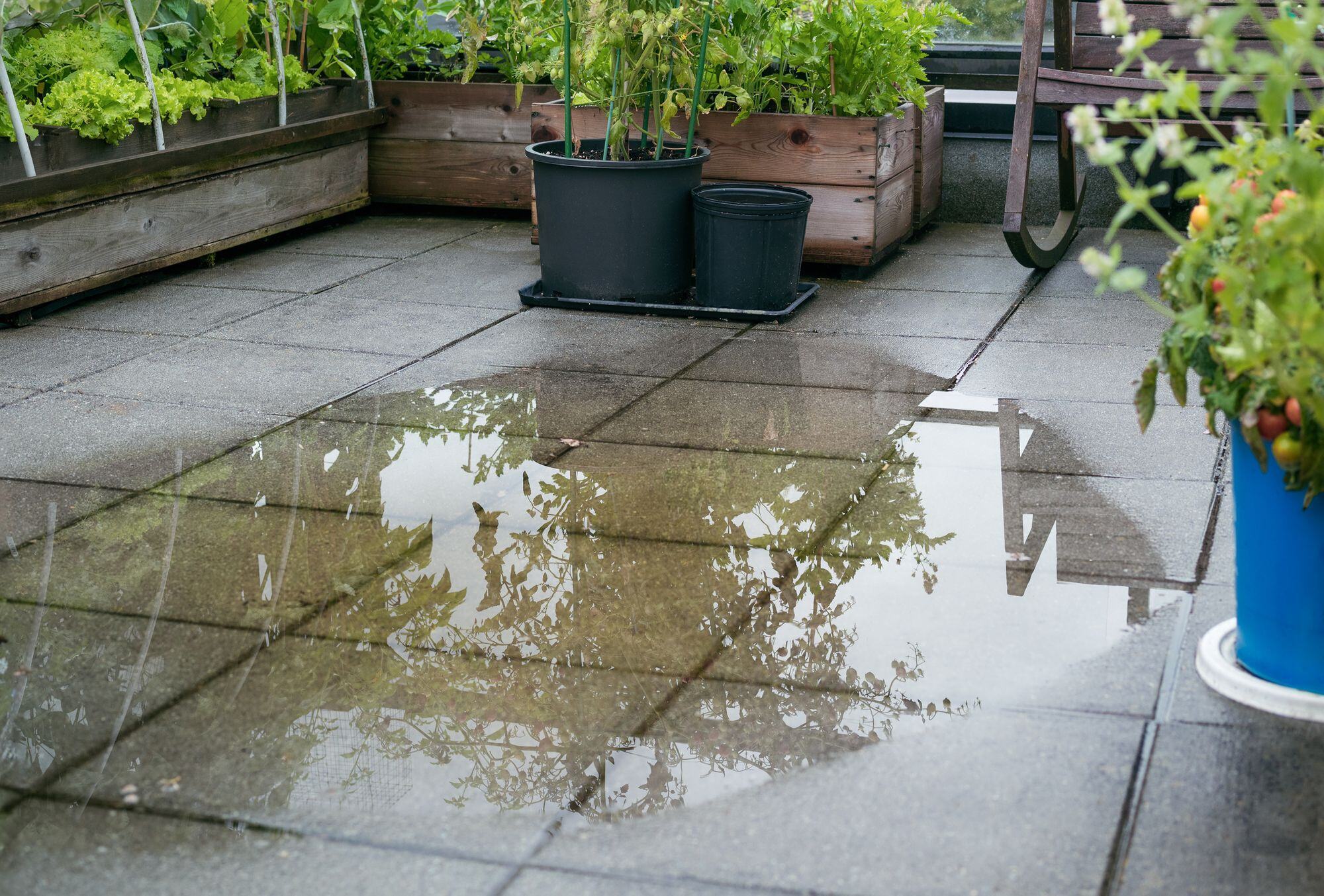

Exterior Waterproofing: Common Failures and Fixes

Most exterior waterproofing failures occur at transitions, penetrations, and unprimed substrates. Fix: prime all concrete, lap membrane 6 in. at transitions, seal penetrations with formed flashing. This resource maps failures to the correct system response.

Formulated Materials

formulatedmaterials.com

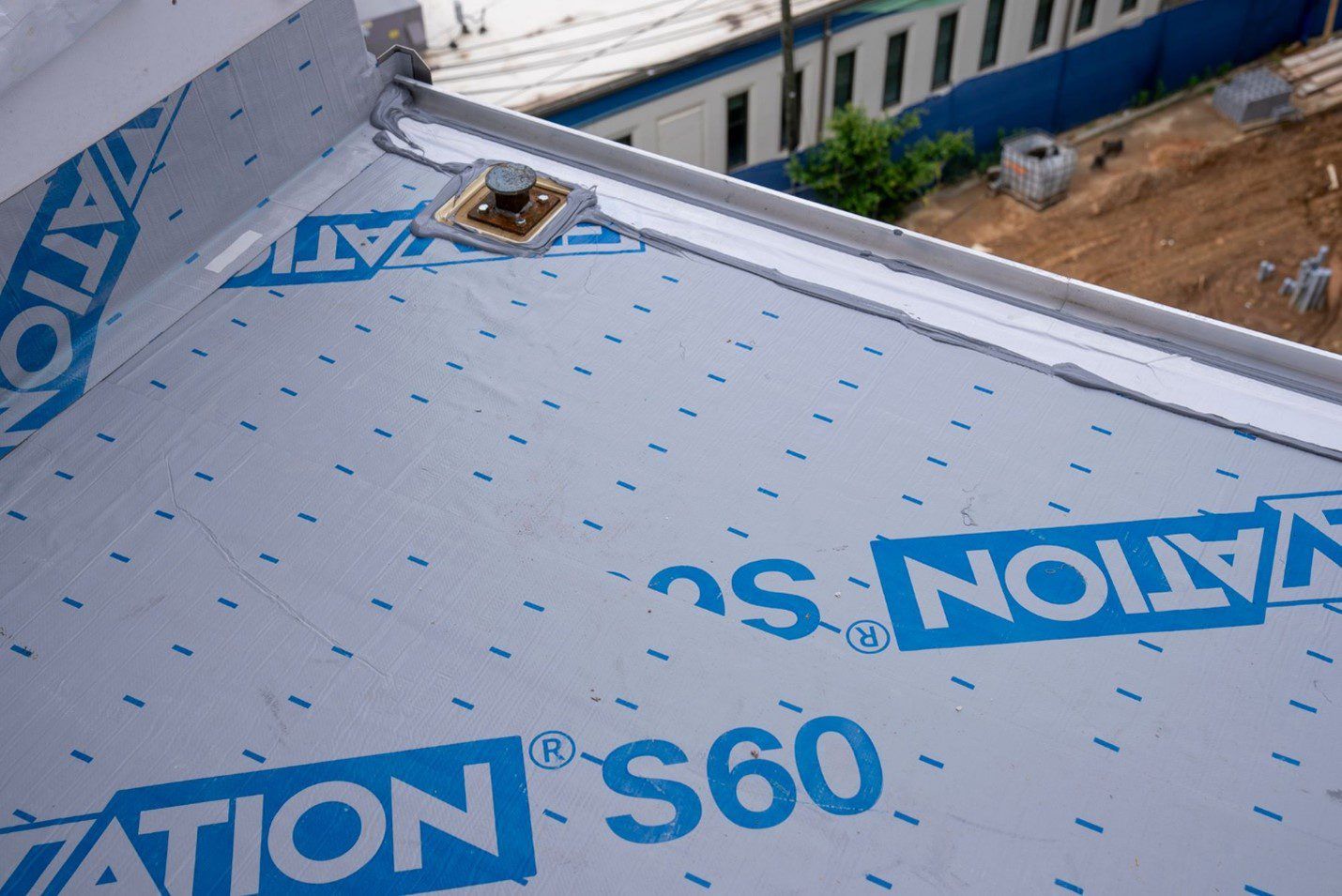

Integrated Waterproofing System: Assembly and Cure Guide

Full assembly for occupied decks: SP1 primer + S60 membrane + drainage mat + protection board. Install in sequence; cure 48-72 hrs before concrete or tile topping. Single-source spec eliminates trade scope gaps.

Formulated Materials

formulatedmaterials.com

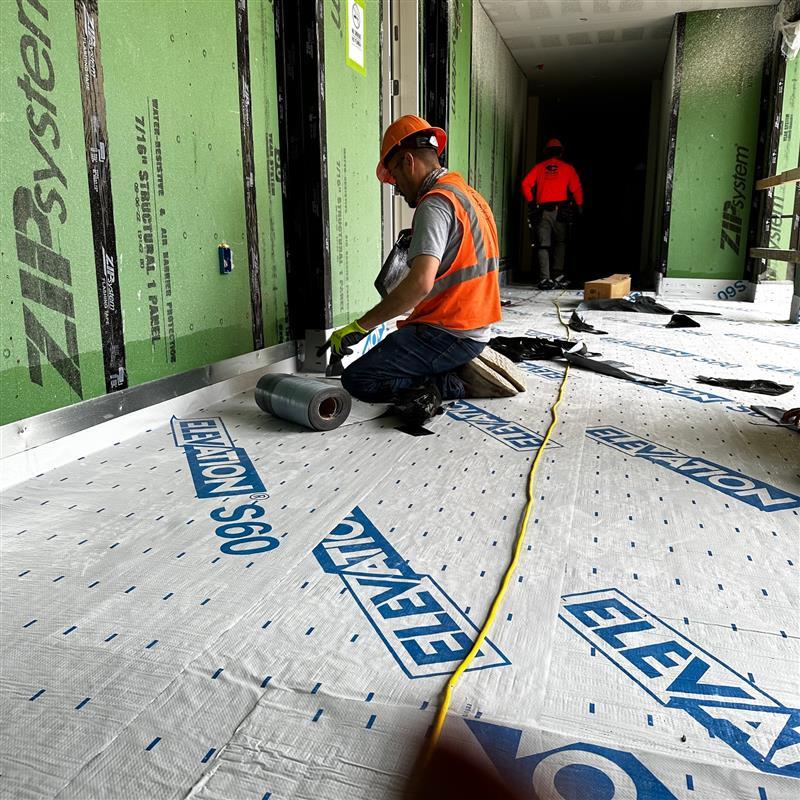

Breezeway Waterproofing: System Selection and Install Notes

Breezeways require a reinforced membrane rated for foot traffic plus UV-stable topcoat. Slope deck to drain at 1/8 in. per ft minimum. Apply SP1 primer first; allow 48 hrs cure before opening to traffic. System must handle horizontal water ponding.

Formulated Materials

formulatedmaterials.com

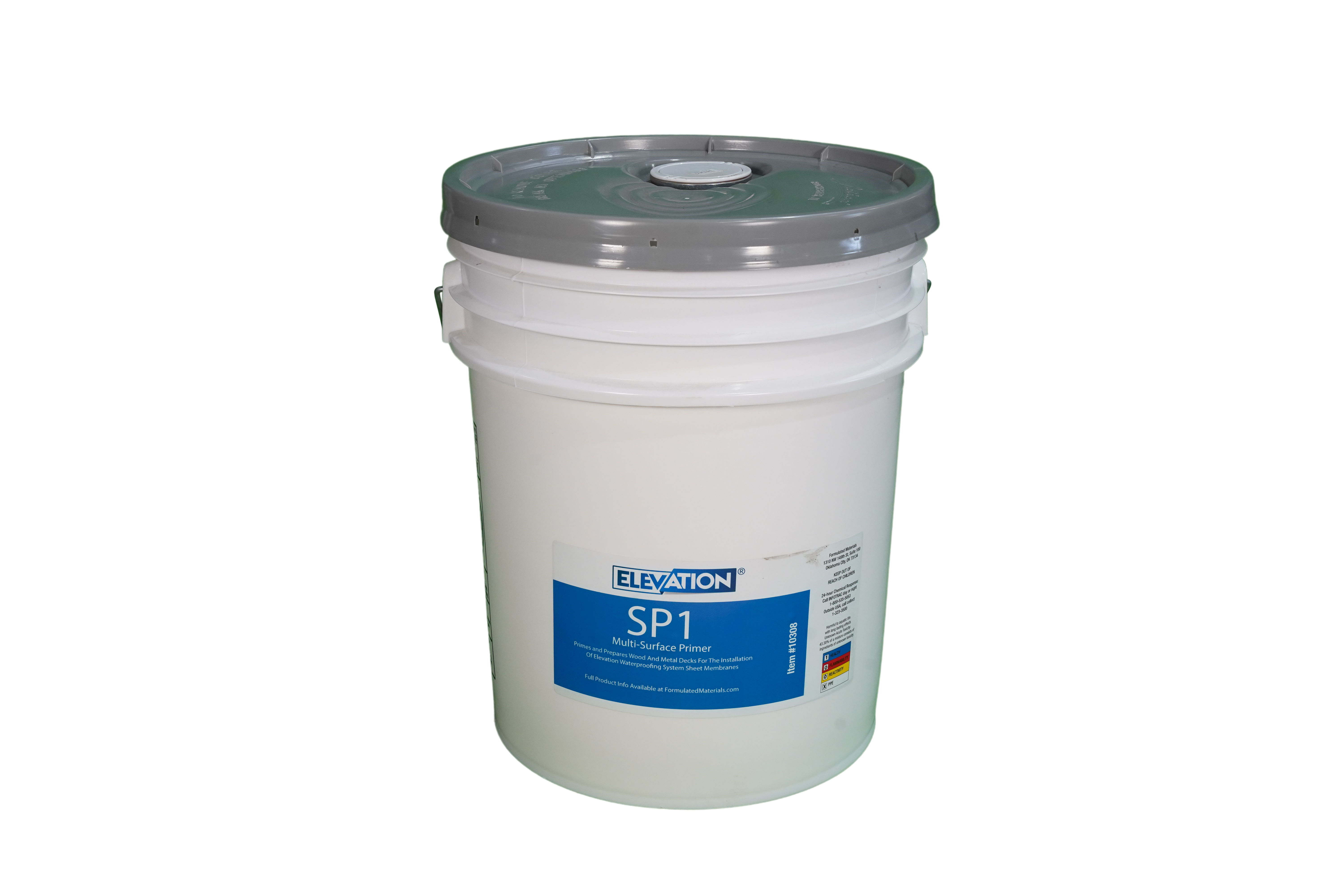

SP1 Primer: Application, Coverage, and Cure Data

SP1 primer is required under all S60 and integrated assemblies. Apply 1 coat at 200-250 sq ft per gallon on prepared concrete. Flash-off: 30-60 min at 70F. Full cure: 24 hrs. Do not apply below 40F or over damp substrate.

Formulated Materials

formulatedmaterials.com

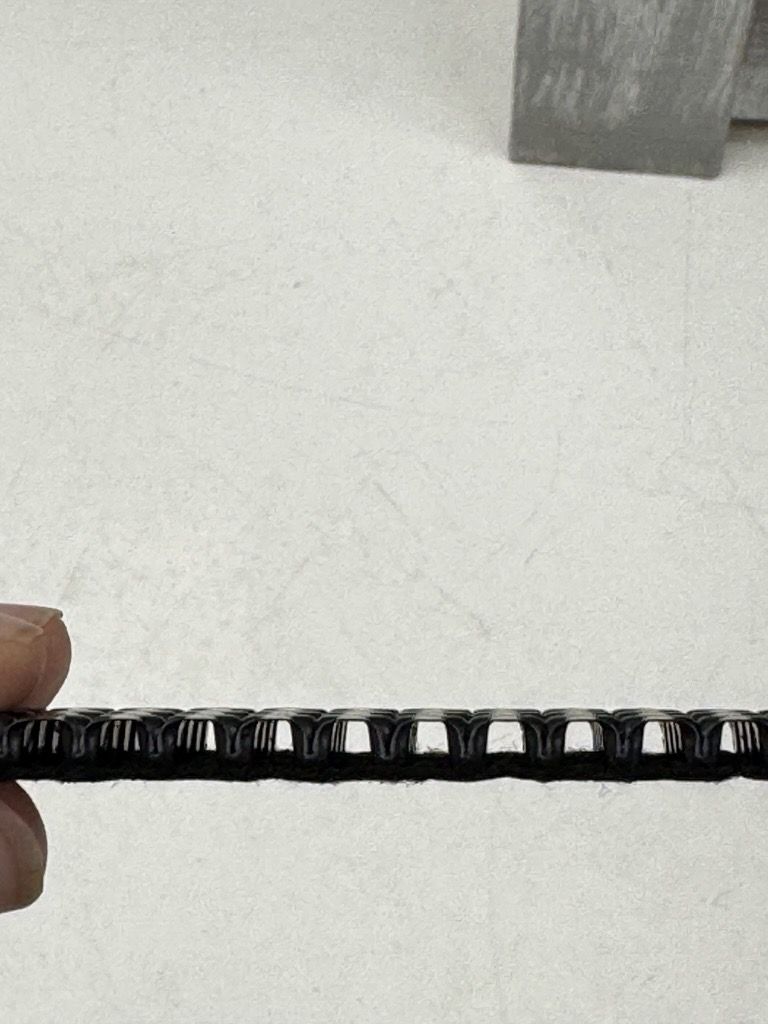

Drainage Mats: Selection, Install Sequence, and Performance

Drainage mats go drainage-side down directly over the cured membrane. Overlap edges 2 in. minimum; terminate at drain ring. Required in all balcony, plaza deck, and green roof assemblies with concrete or paver topping. Protects membrane from point-load damage.

Formulated Materials

formulatedmaterials.com

Request the S60 Sheet Membrane Spec Sheet

Request the S60 spec sheet: coverage rates, mil thickness, tensile strength, perm rating, and approved substrates. Self-adhered sheet membrane for balcony and exterior deck assemblies over SP1 primer.

Formulated Materials

formulatedmaterials.com

Request the Integrated Waterproofing System Spec Package

Request the full assembly spec package: SP1 primer + S60 membrane + drainage mat + protection board. Includes sequencing, cure windows, substrate prep requirements, and detail drawings for balconies and plaza decks.

Formulated Materials
